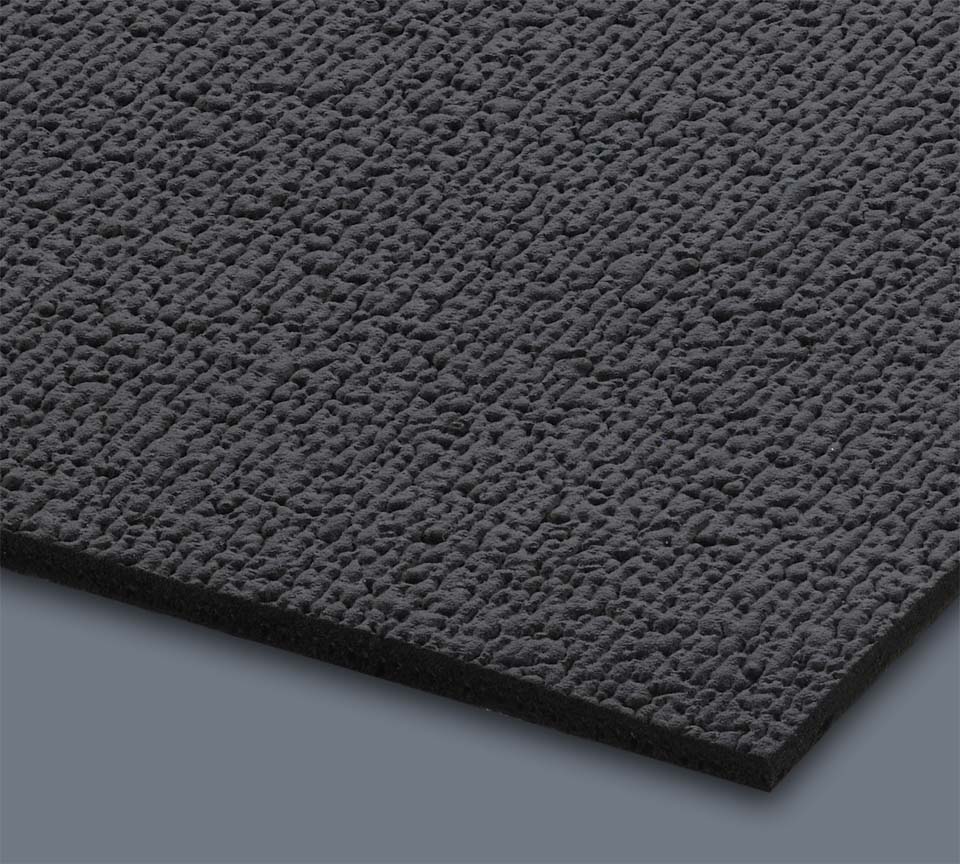

AKO ELASTIC 2.5 B1 + ELASTIC 4.5 B1

Premium fire-retardant insulation underlay suitable for the gluing of wall-to-wall carpets.

  • For the laying in public buildings, hotels etc.
  • Very high walking comfort
  • Excellent impact sound and thermal insulation
  • Prolongs the durability of your wall-to-wall carpet
  • Fire-retardant Bfl-s1 according to DIN EN 13501-1

Available sizes

AKO ELASTIC 2,5 B1
Rolls
30 m x 190 cm

AKO ELASTIC 4,5 B1
Rolls
20 m x 190 cm

AKO ELASTIC 4,5 B1

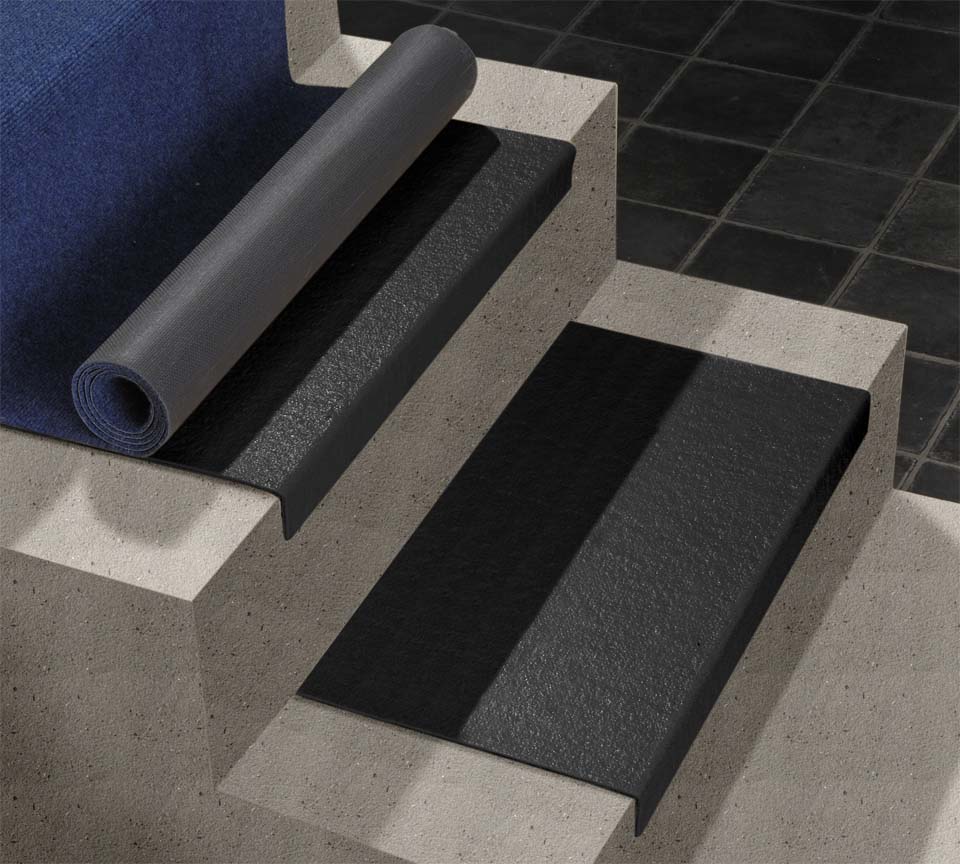

Angle Stair Mat (PU 25 pcs.)
25 x 60 cm | 25 x 80 cm

Technical details

Structure
PES/glass fibre yarn coated on both sides with a special PVC foam.

Colour, Texture
black, plain

Thickness ca. 2.5 mm
Improved insulation 1/λ = 0,05 m² K/W
Sound insulation 19 db

Thickness ca. 4.5 mm
Improved insulation 1/λ = 0,09 m² K/W
Sound insulation 29 db

Certificates

Iff - Institute for Floor Construction, Overath
Fire retardant according to DIN EN 13501-1 Bfl-s1

Downloads

Product description (pdf)

Stufenmatten (pdf)

Recommended adhesives (pdf)

Zertifikat Bfl-s1 AKO ELASTIC 2,5 B1 (pdf)

Zertifikat Bfl-s1 AKO ELASTIC 4,5 B1 (pdf)
